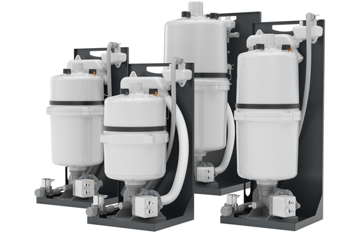

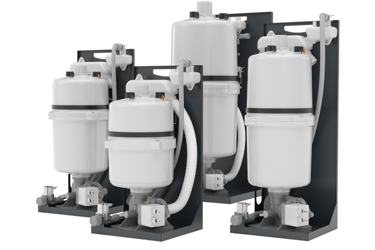

Immersed electrode humidifiers with production capacity up to 40kg/h ideal for OEMs
Features
Washable boiler
20,000 hours of operation
5 times less plastic at end of life
Versatile
Compact stand-alone unit suitable for many applications
Energy efficiency
Boilers, linear distributors and steam blowers available with reduced thermal transmittance
Saves water
The operation algorithm ensures only the amount of steam required is produced, optimizing water consumption
Accurate
The new operation algorithm, together with a wide variety of boilers, ensures precision control, irrespective of the characteristics of the water
Features
The overflow system protects against boiler overpressure and its value can be modified on request with an optional kit
Pump-driven draining system which breaks the limescale deposit into small pieces for easy ejection
Automatic boiler cleaning system
Protection against water escaping on the steam side
Boiler circuit and polymeric parts of the linear steam distributors are in self-extinguishing material
No mechanical obstructions on the steam side and drain side
Mechanical parts designed to simplify use and maintenance
Connection for RS-485 protocol for remote control in MODBUS mode

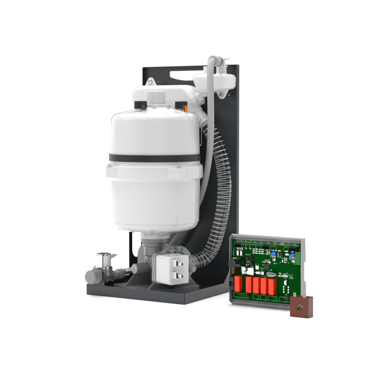

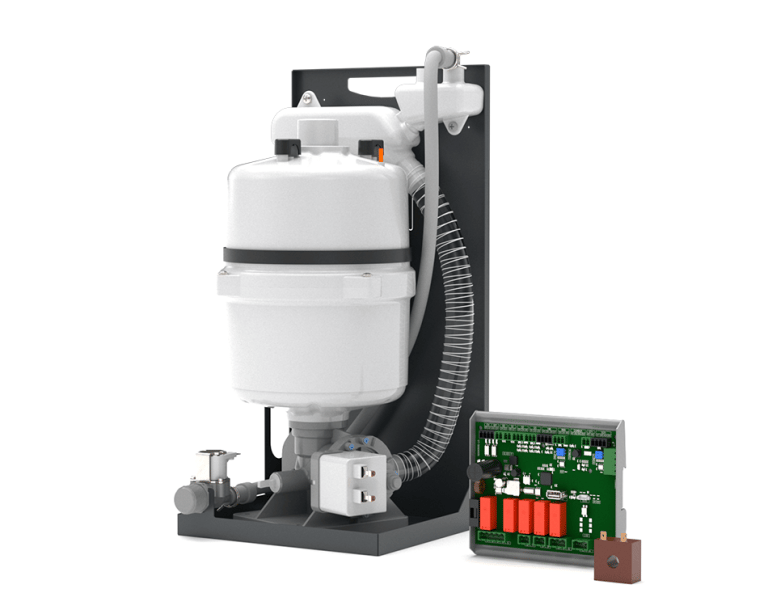

Solution with support and boiler available in different sizes + electronic controller and current transformer (both to be ordered separately)
The space-saving design is ideal for proofers, ovens, CMV units and precision or close control air conditioners in data centres
A highly adaptable solution, as OEMs can configure their own humidity production capacity and power supply voltage
Electronic controller with an open frame board which can be housed in the electrical panel
Steam distribution systems
Linear distributors for ducts
Extruded linear distributor with reduced thermal transmittance
The surface in non-porous, waterproof engineering plastic prevents bacterial proliferation and complies with Method A and Method C of ISO846. It withstands sudden changes in temperature and chemicals, thus making it easy to sterilize.
Stainless steel linear distributor
Stainless steel is a very hygienic material as it is corrosion resistant and its surface is compact and non-porous, making removing bacteria during cleaning and sterilization easier.
Zephyr EHKO – OEM series
